| Model No | ST16160 | ||
| Image Format Cover | 1" ～ 1/3" | ||
| 焦点距离 | 16 ～ 160 mm | ||
| MAX光圈比率 | 1 : 2.0-2.4 | ||
| Zoom Ratio 变焦倍数 | 10.0 倍 | ||
| Iris光圈 | Control Method | 手动 | |
| Iris Range | F2.0 ～ Close | ||
| 速度 | * * * | ||
| Input Voltage & Current | * * * | ||
| Sensitivity Adjustment | * * * | ||
| Focus 焦点 | 控制方式 | 手调 | |
| Zoom 变焦 | 控制方式 | 手调 | |
| 视角 (D×H×V) |
1/3 inch | Wide | 20.8° × 16.7° × 12.5° |
| Tele | 2.2° × 1.8° × 1.3° | ||
| 1/2 inch | Wide | 27.7° × 22.1° × 16.7° | |
| Tele | 3.0° × 2.4° × 1.8° | ||
| 2/3 inch | Wide | 37.1° × 30.0° × 22.8° | |
| Tele | 4.1° × 3.3° × 2.4° | ||
| 1 inch | Wide | 53.4° × 43.4° × 32.9° | |
| Tele | 5.7° × 4.6° × 3.5° | ||
| Minimum Object DistanceMIN可视距离 | 1.5 m | ||
| Back Focal Length 后焦长度 | 34.94 mm | ||
| Effective Diameter | Front 前部 | φ63.0 mm | |
| Rear 后部 | φ20.0 mm | ||
| Filter Screw size | M67.0 P=0.75 | ||
| Mount | C / 17.526mm | ||

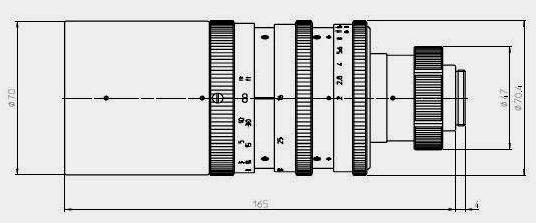

| Mechanical Dimension(D×L)机械尺寸 | φ70.4mm × 165.0mm | ||
| Weight重量 | 829.0 g | ||
| 应用温度环境 | -10°C ～ +50°C (+14°F ～ +122°F) | ||
