| Model No | SE2514 | |
| Image Format Cover | 1" ～ 1/3" | |
| 焦点距离 | 25.0 mm | |
| MAX光圈比率 | 1 : 1.4 | |
| Iris光圈 | 操作 | 手动调节 |
| Iris Range | F1.4 ～ Close | |
| FocusOperation | Focus 焦点 | 手调 |
| Scale | ||
| 视角 (D×H×V) |
1/3 inch | 13.3° × 10.6° × 8.0° |
| 1/2 inch | 17.6° × 14.2° × 10.6° | |
| 2/3 inch | 24.1° × 19.4° × 14.6° | |
| 1 inch | 34.8° × 27.8° × 20.9° | |
| Minimum Object DistanceMIN可视距离 | 0.5 m | |
| Back Focal Length 后焦长度 | 11.50 mm | |
| Effective Diameter | Front 前部 | φ18.7 mm |
| Rear 后部 | φ14.0 mm | |
| Filter Screw size | M43.0 P=0.75 | |
| Mount | C / 17.526mm | |
| Mechanical Dimension(D×L)机械尺寸 | φ45.0mm × 28.0mm | |
| Weight重量 | 81.0g | |
| 应用温度环境 | -10°C ～ +50°C (+14°F ～ +122°F) | |

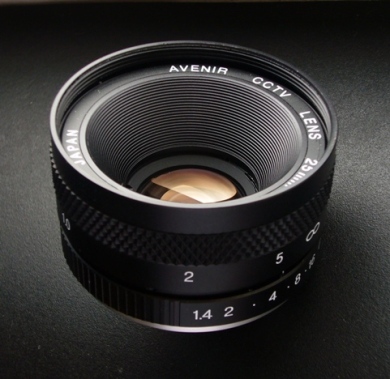

SE2514
