| Model No | SSV0770 | SSV0770G | SSV0770GNB | ||
| Image Format Cover | 1/3" ～ 1/4" | ||||
| 焦点距离 | 7.0 ～ 70 mm | ||||
| MAX光圈比率 | 1 : 1.8 | ||||
| Zoom Ratio 变焦倍数 | 10.0 倍 | ||||
| Iris光圈 | Control Method | 手动 | 视频驱动 | 直流驱动 | |
| Iris Range | F1.8 ～ Close | F1.8 ～ 360 | |||
| 速度 | * * * | Approx. 1.5 sec | * * * | ||
| Input Voltage & Current | * * * | DC 8 ～ 16V Max. 30mA | * * * | ||
| Sensitivity Adjustment | * * * | 0.5 ～ 1.0VP-P | * * * | ||
| Focus 焦点 | 控制方式 | 手调 | |||
| Zoom 变焦 | 控制方式 | 手调 | |||
| 视角 (D×H×V) |
1/4 inch | Wide | 36.22° × 28.84° × 21.56° | ||
| Tele | 3.78° × 3.03° × 2.28° | ||||
| 1/3 inch | Wide | 50.65° × 40.05° × 29.82° | |||
| Tele | 5.17° × 4.16° × 3.13° | ||||
| 1/2 inch | * * * | ||||
| 1 inch | * * * | ||||
| Minimum Object DistanceMIN可视距离 | 0.3 ～ 1.0 m | ||||
| Back Focal Length 后焦长度 | 13.25 ～ 18.39 mm | ||||
| Effective Diameter | Front 前部 | φ34.6 mm | |||
| Rear 后部 | φ11.2 mm | ||||
| Filter Screw size | M46.0 P=0.75 | ||||
| Mount | CS / 12.5mm | ||||
| Mechanical Dimension(D×L)机械尺寸 | φ55mm × 82.2mm | φ48mm × 55mm × 82.2mm | |||
| Weight重量 | 199.5 g | 205.5 g | 201.5 g | ||
| 应用温度环境 | -10°C ～ +50°C (+14°F ～ +122°F) | ||||

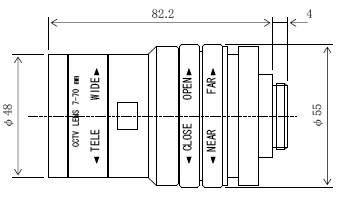

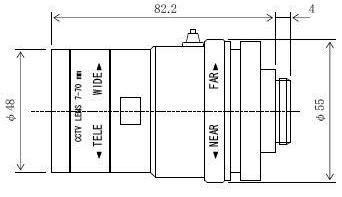

SSV0770 SSV0770GNB
